Nitro 20V Brushless Jigsaw
Item
WX542Lc


Nitro 20V Brushless Cordless Jigsaw

Item
WX542L
As low as $179.99 Regular Price $129.99
Coming Soon!

Be notified when this item arrives

  • Proven Power—Worx NITRO™ tools are built for pro-level performance to elevate power, speed, and productivity on every task.
  • The high-efficiency brushless motor delivers 25% more power, 50% more run time, and 10% longer life of the tool compared to tools with brushed motors.

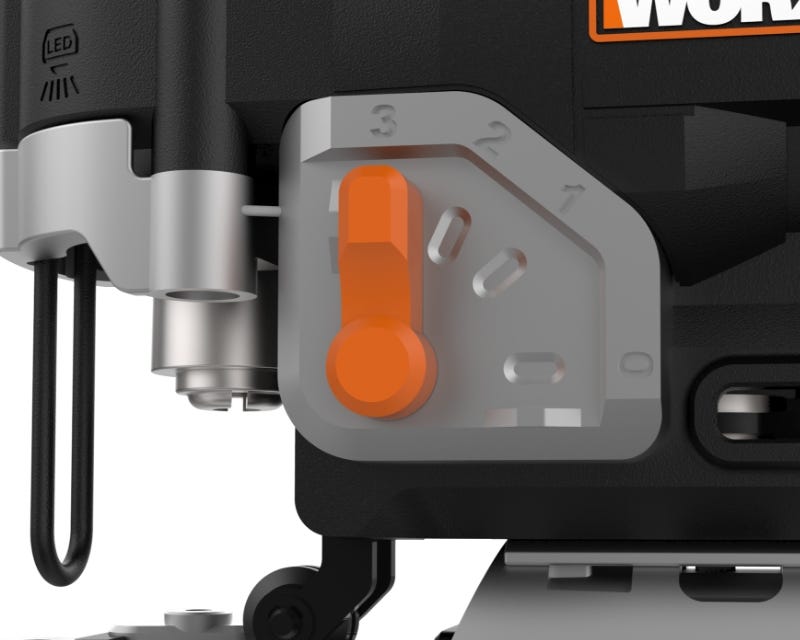

  • 4-Position orbital action delivers precise cutting and control of cut.
  • The tool-free bevel base adjustment allows for quick and easy bevel adjustments for 0-45° left or right.
  • The variable speed trigger offers a no-load speed of 0-3,500 SPM (strokes per minute) for maximum control with less chipping.

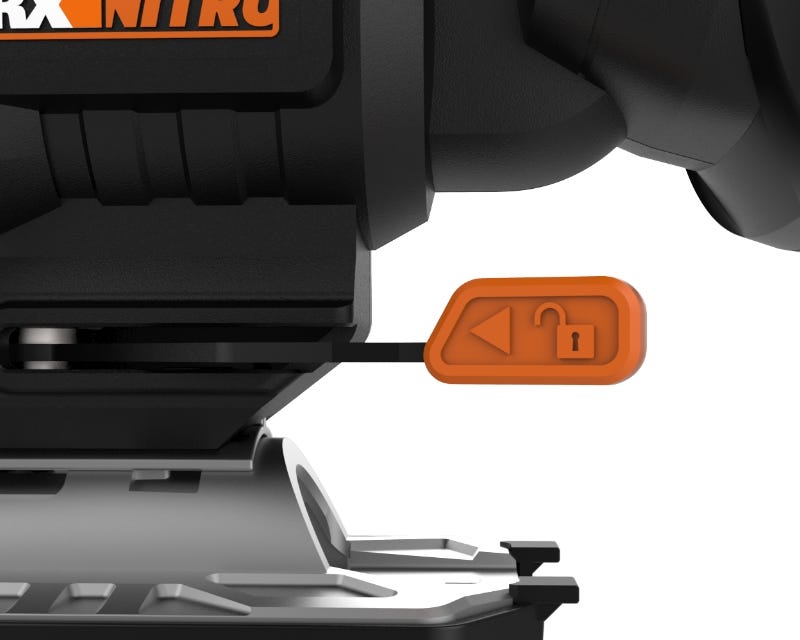

  • Tool-free blade clamp allows for easy blade changes and accepts most T-shank blades from other brands.

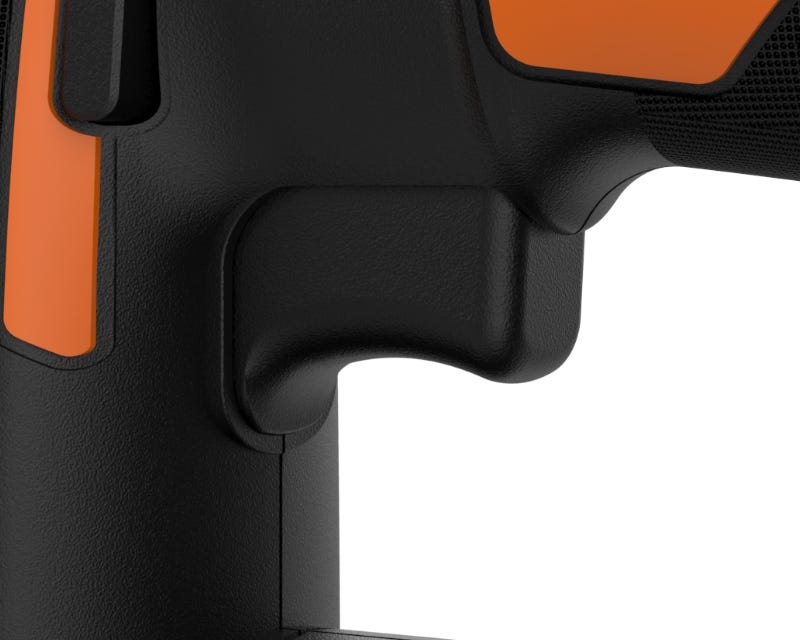

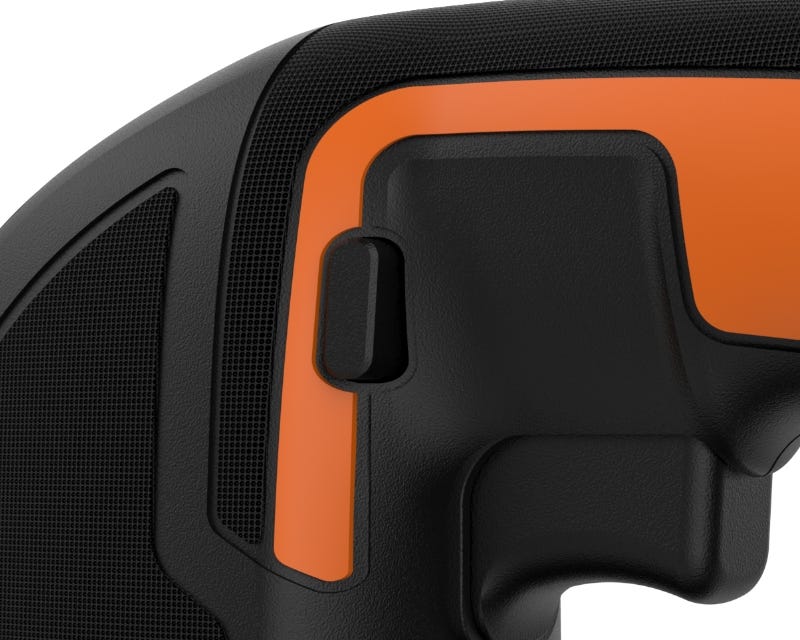

  • Comfortable, ergonomic design with Gripzone micro-texture offers optimum comfort when operating for long periods of time.
  • Includes 2.5Ah battery (WA3577), 2A Quick charger (WA3881), wood cutting blade, vacuum adapter, and carrying case.
  • Same Battery, Expandable Power – The same battery powers over 75+ 20V, 40V, and 80V lifestyle, garden, and power tools in the Power Share family.
orange, black and white logo for Worx NITRO toolsorange, black and white logo for Worx NITRO tools

Proven Power

The power and advanced technology to expertly handle any level project with Worx NITRO cordless tools and accessories. Do more, finish faster and deliver real results with every charge.

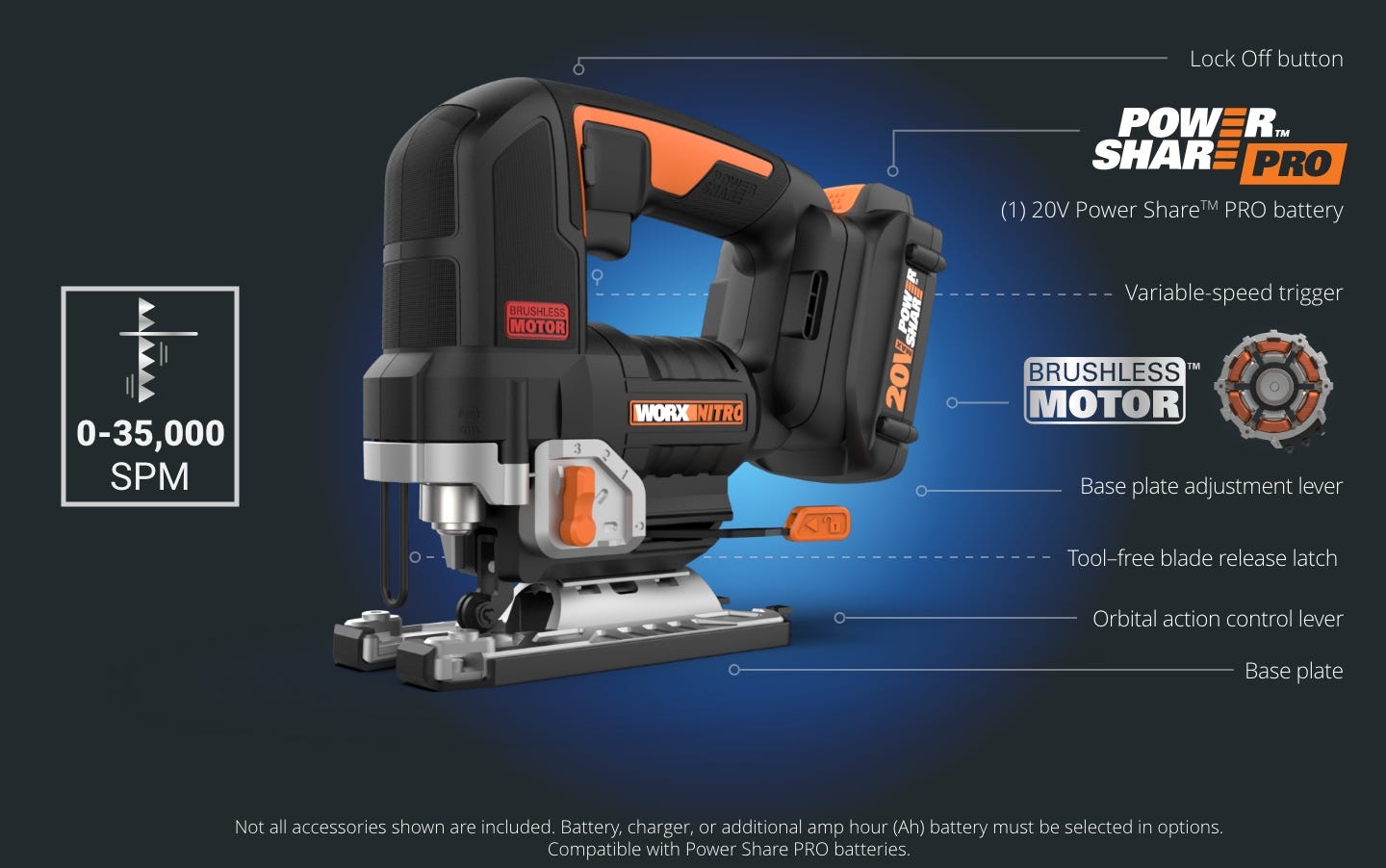

Worx Nitro 20V BRUSHLESS JIGSAW

Outperforms Traditional Jigsaws

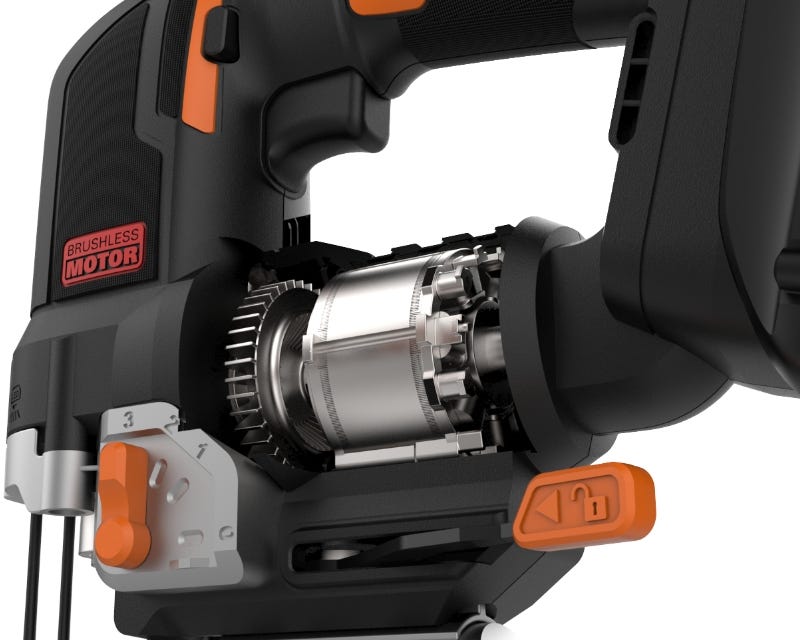

Brushless Motor

Brushless motors are more efficient, run 50% longer, are 25% more powerful, and offer 10% longer life of the tool compared to the motors with a brushed design.

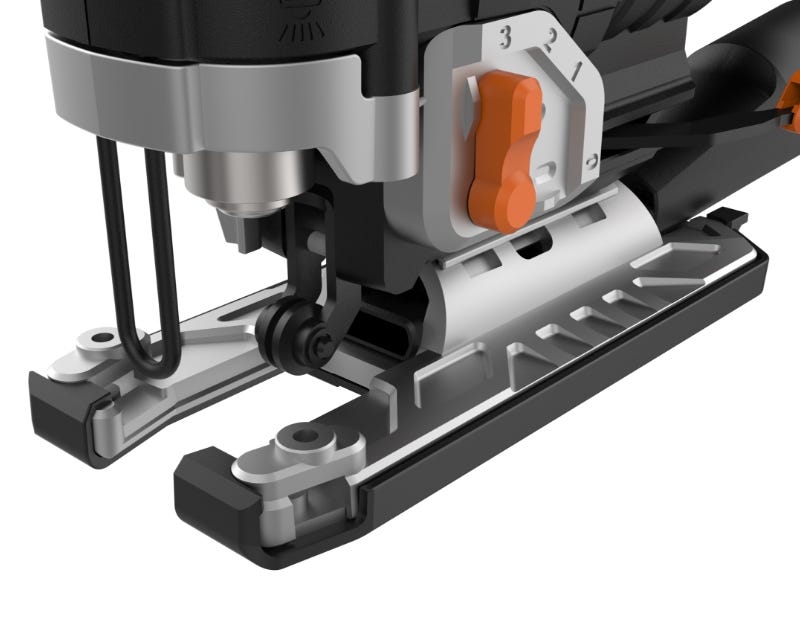

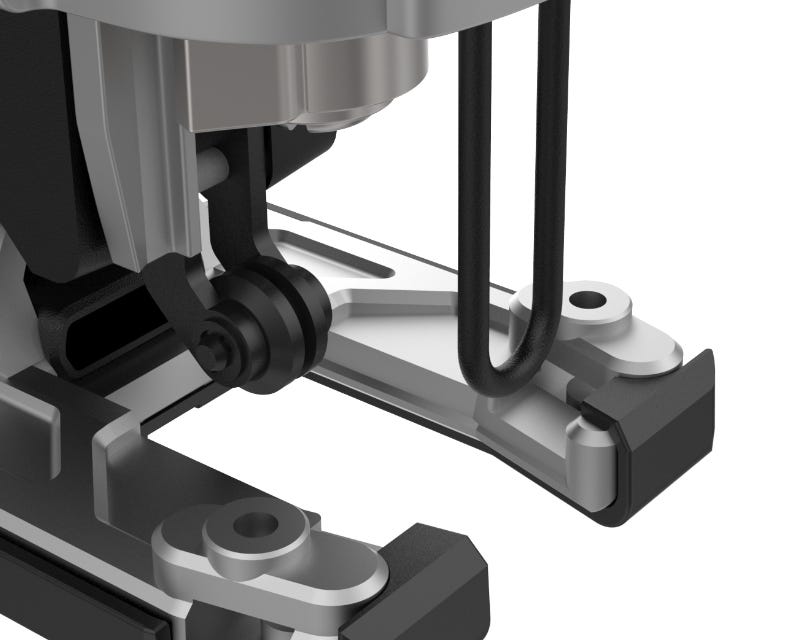

Tool-Free Bevel Base Adjustment

Quick and easy bevel adjustment for 0-45° left or right.

Quick and easy bevel adjustment for 0-45° left or right.

Allows for easy blade changes and use of T-Shank blades from other brands for convenience.

advanced engineering iconadvanced engineering icon

Advanced Enginnering

Efficiency and advanced engineering powered by cutting-edge research and innovation produces professional grade cordless tools.

brushless motor iconbrushless motor icon

Brushless Motor

Brushless motors are also lighter and more compact than traditional motors, making Worx NITRO™ tools lighter and easier to operate even in the toughest conditions.

power share 20v pro batterypower share 20v pro battery

Compatible with Power Share™ Pro

Power Share™ PRO is a next level Lithium-Ion battery that offers upgrades like greater amp hours for extended run times, heat and impact protection, and longer lifespan so you can do more on every charge.

orange, black and white logo for Worx NITRO toolsorange, black and white logo for Worx NITRO tools

Proven Power

The power and technology to do more, finish faster and deliver real results with every charge.

Voltage
20V MAX
Battery Capacity
2.5Ah
Stroke Length
1 in. (26mm)
No-Load Speed
0-3500 SPM
Bevel Capacity
0-45°
Max Cutting Depth (Wood)
4-23/32 in. (120mm)
Max Cutting Depth (Steel)
25/64 in. (10mm)
Max Cutting Depth (PVC)
2 in. (50mm)
Weight (Bare)
4.2 lbs.
(1) - Nitro 20V Jigsaw
(1) - Wood Cutting Blade
(1) - Vacuum Adapter
(1) - Carrying Case
(1) - 20V 2.5Ah Battery (WA3670)
(1) - Quick Charger (WA3881)

Yes, the brushless jigsaw can cut up to 25/64 in. (10mm) of steel.

Yes, this Worx NITRO Brushless Cordless Jigsaw accepts T-Shank blades for professional results.

Plunge cuts can be made into soft materials without a pre-drilled hole. Harder materials require a starter hole with a diameter slightly over the width of the blade.

To make a plunge cut:

  1. Set the orbital action control lever to 0.
  2. Make sure nothing below the intended cut area will be damaged.
  3. Without turning the tool on, place the front edge of the shoe solidly on the workpiece.
  4. Align the blade with the intended cut line but keep it above the workpiece.
  5. Using the front edge of the shoe as a pivot, turn on the tool and gradually lower the blade into the workpiece.
  6. When the shoe is flat against the workpiece, normal cutting may take place.

Orbital action takes the jigsaw blade’s straight sawing movement and adds increasing levels of elliptical motion to it. That motion creates a faster, more aggressive cut the same way it does for a reciprocating saw. With the elliptical motion, sawdust and material chips can clear the teeth more easily and cut through the material faster. In general, a large orbital action (setting 3) should be used with soft materials and a no orbital action (setting 0) should be used with hard materials. When a smooth cut is required, no orbit (0) should be used.

Yes, the WX542L Worx NITRO Brushless Cordless Jigsaw will operate with a 2.0Ah battery and any other Worx 20V Power Share battery.
