WX543L TECHNICAL SPECIFICATIONS

WX028L TECHNICAL SPECIFICATIONS

WX101L TECHNICAL SPECIFICATIONS

Yes, this model includes 2 batteries and one charger.

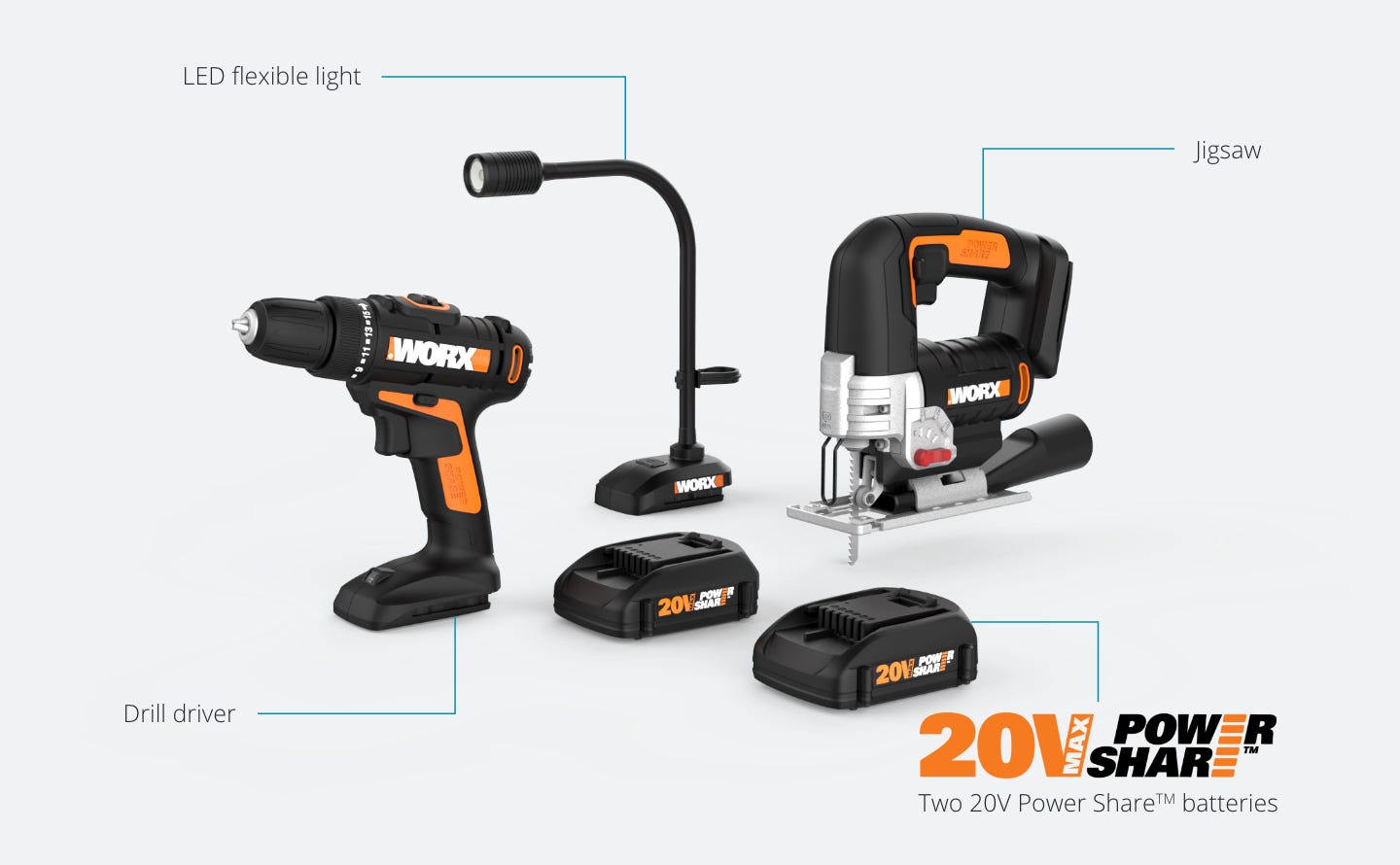

In addition to the WX101L, WX543L, and the WX028L tools, this kit includes two 20V Max Lithium batteries, a charger, a dust extraction adaptor, dual-ended bit, and a wood cutting jigsaw blade as well as a tool bag to hold all of it.

The tool bag measures 13" long x 6" wide x 7.5" deep.

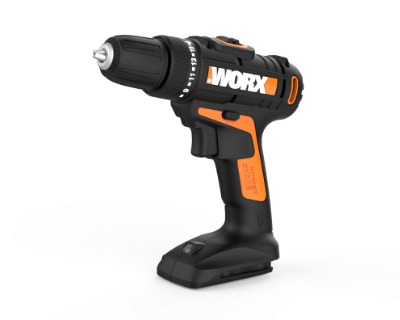

Power doesn't mean heavy, and that's true for all the tools in the kit. The 20V Cordless Drill Driver will become your go-tool tool, especially because it only weighs 2 pounds before installing the battery.

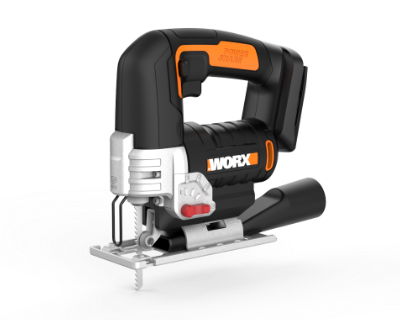

WORX saws have muscle - without requiring your muscles. At only 4.4 lbs without the battery installed, the WORX 20V Cordless Jigsaw is lightweight, but easy-to-maneuver with single-hand control.

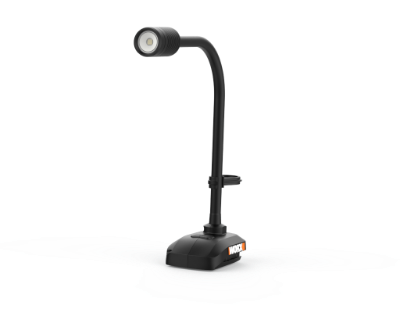

The Flexible Worklight only weighs 0.54 pounds without the battery, and that makes it the perfect companion to your toolbox without weighing it down.

In wood, the maximum recommended hole size is 1". Avoid drilling holes larger than 3/8" in metal.

Torque is a measurement of turning power. With 265 inch-pounds of torque, the WORX Ai Drill easily masters just about any drilling and driving application around the house.

The WORX 20V Cordless Drill Driver uses a 3/8" keyless chuck for quick bit changes, and features 15 clutch positions plus drilling mode.

The chuck on the Cordless Drill Driver can use both hex shank and round shank drilling and driving bits up to 3/8". WORX offers a 67-Piece Drill Bit set and a 16-Piece Drill Bit & Drive set. You can also find other bits available at home centers, hardware stores and anywhere that sells drill bits.

The Cordless Drill Driver's switch, or trigger, controls the speed of rotation. With the variable speed trigger, the rotation speed increases as the trigger are depressed more.

The type of material you can cut with the Cordless Jigsaw depends on the type of blade you use. The 20V Cordless Jigsaw can handle a variety of materials including wood, aluminum, and PVC, just choose the right blade for the job at hand. This kit includes one wood cutting blade. Additional blades or blades for other applications can be found at most hardware and home improvement stores, or you can find a convenient multi-functional kit under Accessories.

While typical saws require an Allen/hex key to switch blades, the WORX Cordless Jigsaw features a tool-less blade change you can operate with just one finger. Simply push and hold the lever at the cutting head to open the mechanism. Remove or insert a blade. Release the switch to activate the mechanism and secure your blade.

Yes, the 20V Cordless Jigsaw has a pendulum mode and has a stroke length of 15/16”, which will easily handle 2X material.

The pendulum function on the Cordless Jigsaw is used to customize the cutting style to fit the type of task at hand. With three settings, the Cordless Jigsaw can handle fine detail and scroll work up to tougher tasks when aggressive, efficient cutting power is more important than precision.

NOTE: For the best cut, especially with fine or scroll cuts, use the lowest pendulum setting. We also recommend starting at a lower speed and increasing as needed for the task at hand. Since the cut is made on the upstroke, cut with visible surfaces facing down. When making curved cuts, select a narrower blades appropriate for the material you're cutting.

Yes! You can plunge cut with this tool and make bevel cuts up to 45 degrees. For your convenience, illustrations on how to complete a plunge cut are available in your owner's manual.

To change the bevel setting on your Cordless Jigsaw, first, remove the battery. Turn the saw over and, using the included allen key, loosen the base stabilization screw. Push the base forward to disengage the teeth holding it in place. Angle and adjust base using the bevel scale on the base to the required angle. Slide the base back to re-seat the teeth. Tighten the base stabilization screw. Reattach the battery, and you're ready to go!

This is one of the safety features included on the WORX Cordless Jigsaw, like the safety switch that can be activated with either hand. The U-shaped piece of metal is a finger guard that helps protect you against accidental slippage resulting in cuts.

Yes! This tool comes with an adapter so you can attach a vacuum to the Jigsaw.

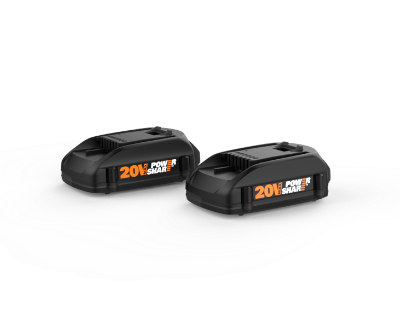

The 20V WORX MAX Lithium batteries compatible with this tool are the same batteries we trust to power the JawSaw, and our Cordless Compact Circular saw, among others, like the Hydroshot and Switchdriver. Since the battery can stand up to those high-powered applications, you can trust it to keep up with you in the Cordless Jigsaw.

Yes! With Power Share, you can share the battery and save money. Your 20V WORXSaw Compact Circular Saw and Cordless Drill Driver can use any WORX 20V battery you already have. By sharing the battery between tools, you’ll always have the power you need to complete any job.

Need more power on hand? Check out our higher capacity 20V batteries.

WORX offers a variety of Amp hour ratings in the 20V battery line to give our customers a wide variety of power options without changing battery platforms or tools. A battery’s amp hour rating measures how much energy can be stored in the battery (energy capacity). The 20V Cordless Jigsaw is compatible with all Amp hour rating varieties available in our 20V Lithium battery line, including the 1.5 Ah, 2.0 Ah (WA3575), 4.0 Ah (WA3578) or 6.0 Ah (WA3671) models.

It takes approximately 5 hours to fully charge the battery.

Additional fast charging options are available.

Run time can vary on several factors, including the tool, the type of work, the conditions under which work is being performed, and may even vary from user to user. Typically, a fully charged 20V 1.5Ah battery included with the work light will last up to 15 hours on one charge. The batteries can be charged and discharged for about 2,000 cycles.

Our lithium tools and Ni-Cd tools are separate platforms and are not interchangeable. Lithium batteries offer our customers maintenance-free technology without the hassle of managing the memory effect inherent in Ni-Cad batteries.

While Power Share allows you to share batteries between tools within the same voltage family, batteries should only be used with tools of a corresponding voltage. Use your 20V MAX Lithium battery with any 20V WORX tool – even the garden tools – but save your 32V battery for your 32V tools.

The included battery will take you far, but if you need more, WORX offers higher capacity batteries, as well as faster chargers.

You can download the manuals here:

20V Cordless Drill

20V Cordless Jigsaw

Flexible Light

Carefully review the owner’s manual for all safety information and guidelines. Follow safety precautions while using any power tools – including wearing safety eyewear, gloves, appropriate shoes & clothing, and keeping hair tied back. See the owner’s manual for complete safety instructions and details.

ATTENTION: For safety, remove the battery when changing the blades or changing the tool between modes. When changing the blade, we recommend wearing gloves to avoid a pinch hazard. When cutting into a wall, shut off water and electricity before working to avoid injury and/or damage. Know where wiring and pipes are before cutting into the wall to avoid unintentional damage.

NOTE: The Work Light is designed to be weather resistant, but be sure not to leave your light or battery outside in the rain.

If you decide the WORX WX958L kit isn’t right for you, we offer a 30-day Money Back Guarantee from the date of receipt (less shipping and handling). View more information here.

We know your tools are indispensable, so we cover each tool with a 2 Year Limited Consumer Warranty. You can extend your warranty to 3 years by registering online within 30 days of purchase. Already have your tools? Register now!

Parts subject to normal wear and tear are not covered by the tool’s warranty. View more information on our warranty here.

Many replacement parts are available online under Accessories.

Given the unique configuration, the bulb isn’t replaceable, but with 10,000 hours of burn time, it’s unlikely you’ll need to replace the bulb for a long time.
