WG585 TECHNICAL SPECIFICATIONS

WG644 TECHNICAL SPECIFICATIONS

Volume Mode: Moves more air for high-capacity leaf blowing.
High-Speed Mode: Enhanced performance moving wet or embedded leaves.

Depress the orange tab to slide the Variable Air Control Nozzle forward or backward. Forward: utilizes the larger nozzle to blow air, while also drawing more air through the secondary air intakes. Backward: utilizes the narrower, central tube for blowing more high-speed, concentrated airflow.

Worx is leading the charge in leaf blowing technology. The high-speed in-line motor is smaller, lighter, more powerful, and allows for a slimmer, narrow configuration, making it lighter and easier to use.

Yes, again, the high-speed motor allows for a smaller, innovative configuration. Bigger doesn’t always mean more power—check out the CFM and MPH—the specs don’t lie. This is pushing 620 CFM and 125 MPH.

The Power Share™ PRO series of Worx high-capacity batteries are designed for optimal performance and come standard with the Worx NITRO™ product offering. These batteries utilize an intelligent battery management system that monitors each cell to enhance, power, performance, and runtime.
Innovative, thermoplastic material encases each cell to pull heat away and maximize the cell’s performance, resulting in longer runtime.
360° cell protection provides increased security against vibration, drops, and water intrusion. This full-wrap design limits the influence that a compromised cell can have over the rest of the battery pack.

No.  The Worx Power Share™ PRO batteries can be used on all existing Worx 20V MAX chargers (WA3742, WA3881, WA3764, WA3770, WA3884, WA3835).

No. The batteries require the same amount of charge-time as the standard Worx Power Share™ batteries. However, due to the Cell-Cooling Technology in the Power Share™ PRO batteries, they stay cooler, longer. As a result, less wait-time is needed before a battery can start charging, due to high temperature.

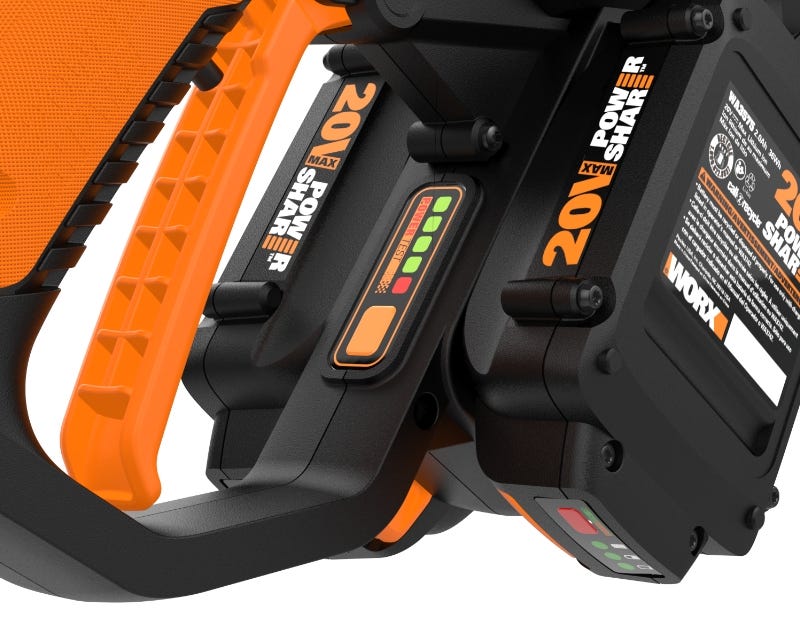

The 2 x 20V tools are designed to work with a pair of batteries and will not operate with just one battery installed. For optimum performance, when pairing up your batteries, we recommend that both batteries are the same Amp Hour rating and are fully charged.

NOTE: We recommend using the same two batteries to run your Hydroshot and charging both batteries at the same time on the dual charger for peak performance. More details can be found in the charger’s manual.

Using batteries with two different capacities, or even different charge levels, won’t improve the performance of your Hydroshot. The tool’s performance will only meet the lowest common denominator, so if one battery is only half charged, it will only work until that one battery is exhausted. No one needs to be short-changed like that! Using the same two batteries and charging them together will ensure the high performance you’ve come to expect from your Worx tools.

The WORX 40V Hydroshot is lightweight. Even with the batteries and lance installed, it only weighs 6.9 lbs. It’s the ultimate portable power cleaner for at home or on the go, and easy to store.

The WORX Hydroshot has custom-designed accessories to perform a variety of applications from cleaning to watering plants. Aftermarket pressure washer accessories can also be used on the Hydroshot, but may not operate as originally designed since the water flow rate is much lower than a typical pressure washer.

The Hydroshot accessories are only designed for use on the Hydroshot and cannot be used on other pressure washing equipment.

The Hydroshot is designed for use with fresh water sources, and using chemicals, cleansers, salt water or any other non-fresh water sources in it will void the warranty. For tough cleaning needs, the soap dispenser accessory can be used to mix any after-market cleaning solutions or liquid soaps. When using fresh water from a pool, lake, river or pond, slide the float along the hose to keep the intake away from the bottom to avoid picking up dirt or mud. When finished, flush the tool with ordinary tap water to ensure its longevity and performance.

Yes, as long as the water is 104 degrees or less.

The WORX Hydroshot has two different speed settings – High and Low – to adapt to the task at hand and deliver more than 5 times the pressure of a garden hose and nozzle. The pressure settings are changed by pushing the button at the top of the handle. High speed allows for more pressure and is best for cleaning with the extension lance and power nozzle. Low speed helps conserve battery run time and is best for watering the with extension lance and the shower setting on the power nozzle.

The water pressure will depend on the speed setting and accessories used, but can reach up to 585 PSI.

Since the pressure can vary depending on the Hydroshot settings, there are a few things to check:

- Make sure the Hydroshot power nozzle is less than 5ft away from the water source surface.

- Set the pressure setting switch to High.

- Confirm that the hose between the water source and the Hydroshot is not being compressed or kinked, or being restricted in any way.

- If using the included hose, make sure the intake filter is floating just under the water’s surface and not touching the bottom, any dirt or debris that may prevent water from being drawn into the hose. If it is securely attached and the unit is not siphoning water from your water source, try attaching a household garden hose directly to the machine using the quick connect adapter. If your Hydroshot works with the direct household connection, flush the machine for at least 1 minute, reattach the supplied hose and try siphoning from your water source again. (This is also a helpful step when bringing the machine out of storage.)

- Remove the orange hose adapter by unscrewing it from the machine (which may require an adjustable wrench). Verify that the rubber gasket filter is still in place and see if any debris is blocking the filter. The Hydroshot will not work properly if the filter is missing. Reinstall the hose adapter and hand tighten, or tighten with a wrench if necessary. Do not overtighten. Additional rubber gasket filter screens are sold at most hardware stores and by WORX.

If all filters are installed and cleared and all accessories are securely tightened, re-install the long lance and nozzle, change the pressure setting to High, and try again. Keep the Hydroshot no higher than 5’ from the water source to decrease the travel distance between the water and tool.

You don't need to purchase any additional accessories. Your Hydroshot is ready to use with the included accessories. The original Hydroshot models included two lances that contributed to the modes of operation. We improved the design of the lance to make using it more intuitive and less complicated to use the Hydroshot pressure modes. Now the WG644 Hydroshot only includes one re-designed lance suitable for all applications.

The extended lance included with the previous iterations of the Hydroshot can be purchased separately. Using it on the WG644 model of the Hydroshot will not change the operational pressure.

To attach a garden hose to the Hydroshot, first attach the quick connect adapter to the hose adapter under the body and in front of the handle guard. Once it is securely attached, attach your garden hose. You can also attach the garden hose without the quick connection adapter. For more information, refer to your owner's manual.

Before storing the Hydroshot, run clean, fresh water through the machine. Remove the battery to allow it to cool and keep it dry. Completely drain all water from the Hydroshot and hose and clean the housing using a soft brush and clean cloth. Do not use water, solvents or polishes. Rinse the hose filter by unscrewing the filter guard counterclockwise, remove and rinse the filter. Replace and screw the filter guard back on in a clockwise direction. Store in a secure, dry, frost-free environment out of reach of children.

Not necessarily. Different packages contain different items. To be sure you’ve received everything, be sure to look at your model number in the “accessories” chart in the manual.
